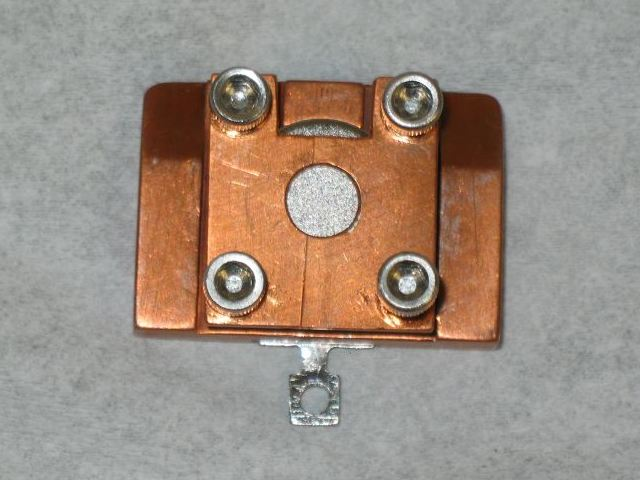

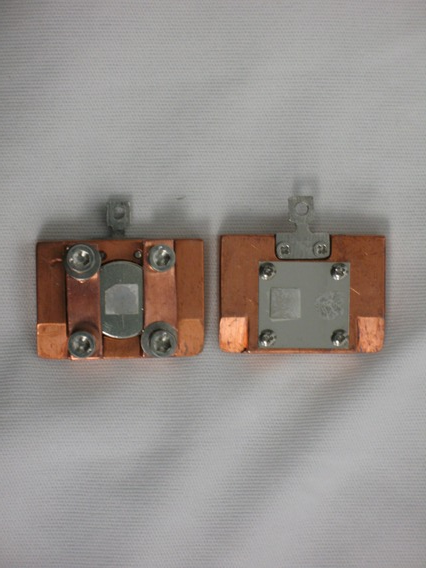

Sample Holder for RSXS Endstation
Maximum sample size is about 10mm X 10mm.

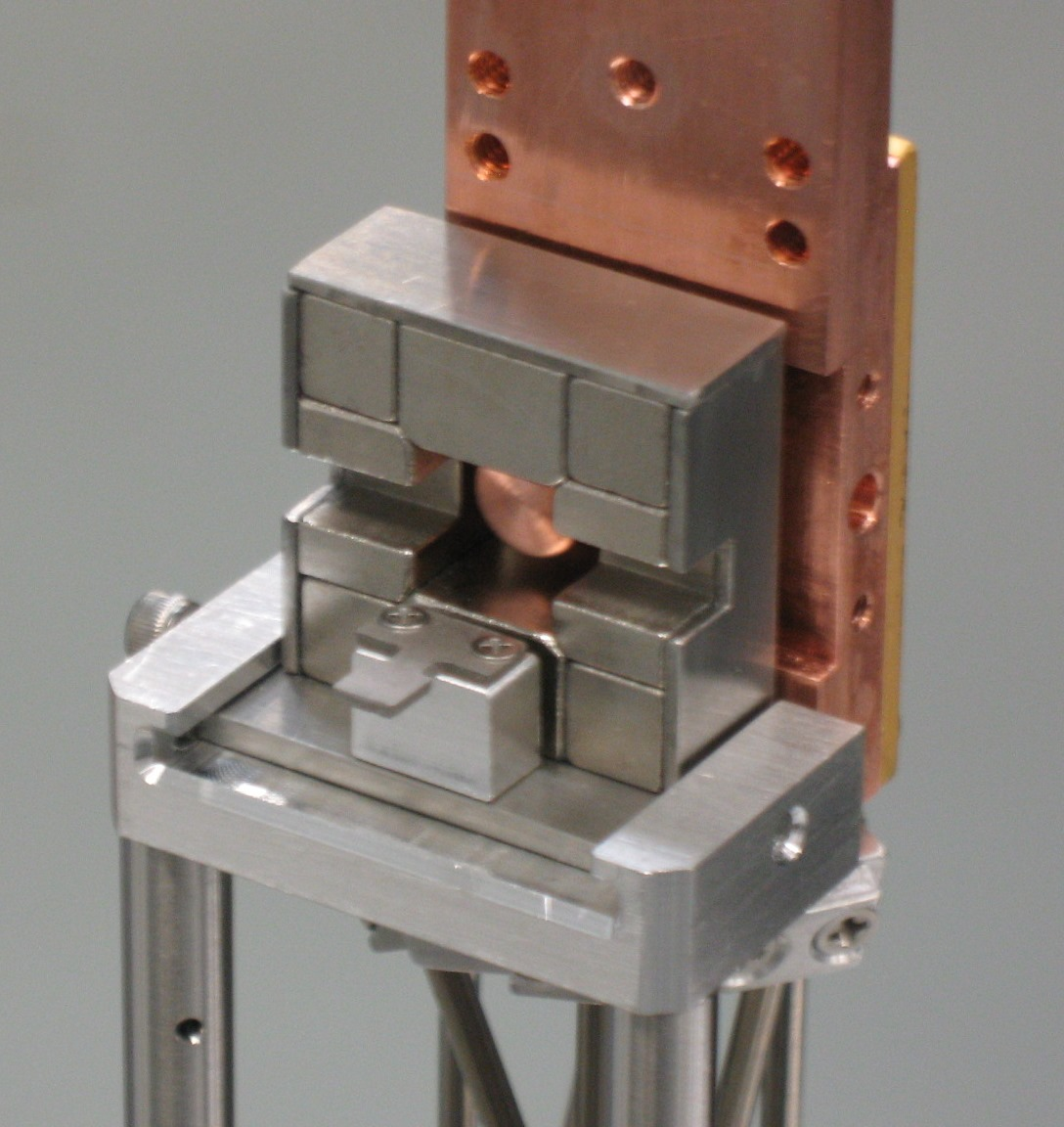

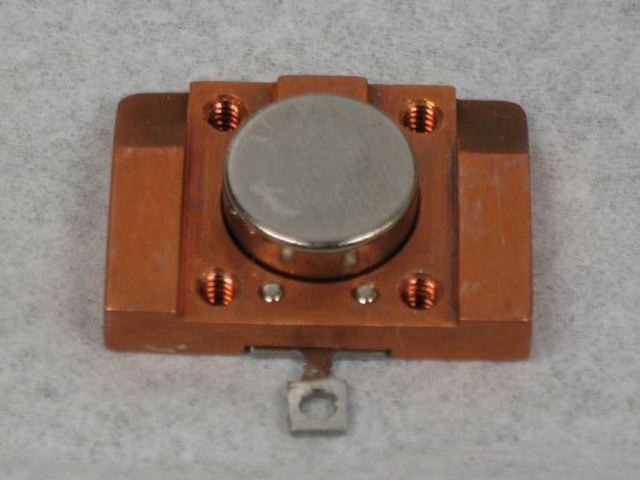

Sample holder with 0.7T or 1.4T permanent magnet
Sample holder and magnet

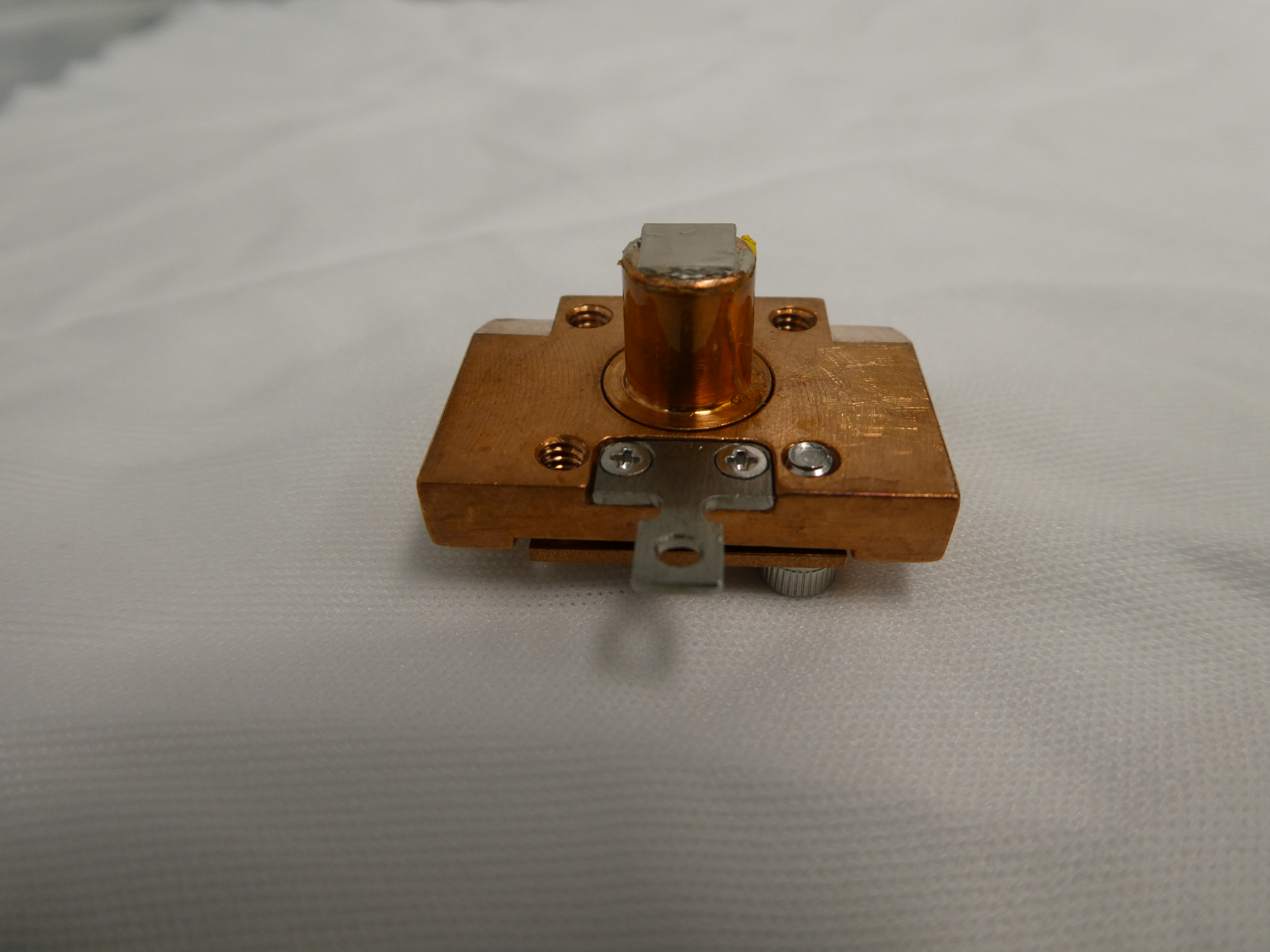

Max sample size 5mmX5mm. In-vacuum adjustment of azimuthal angle possible.

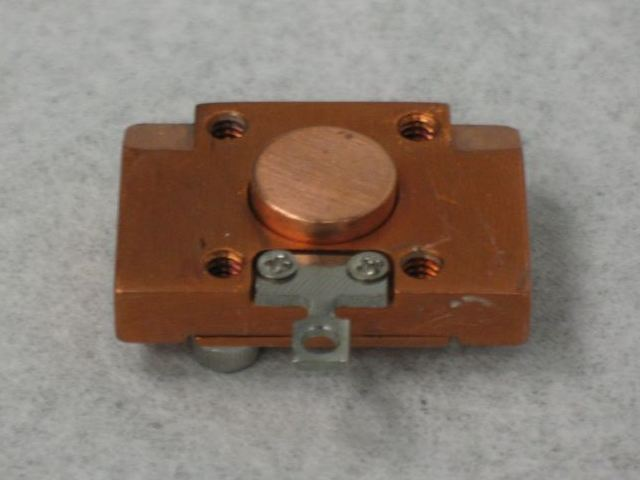

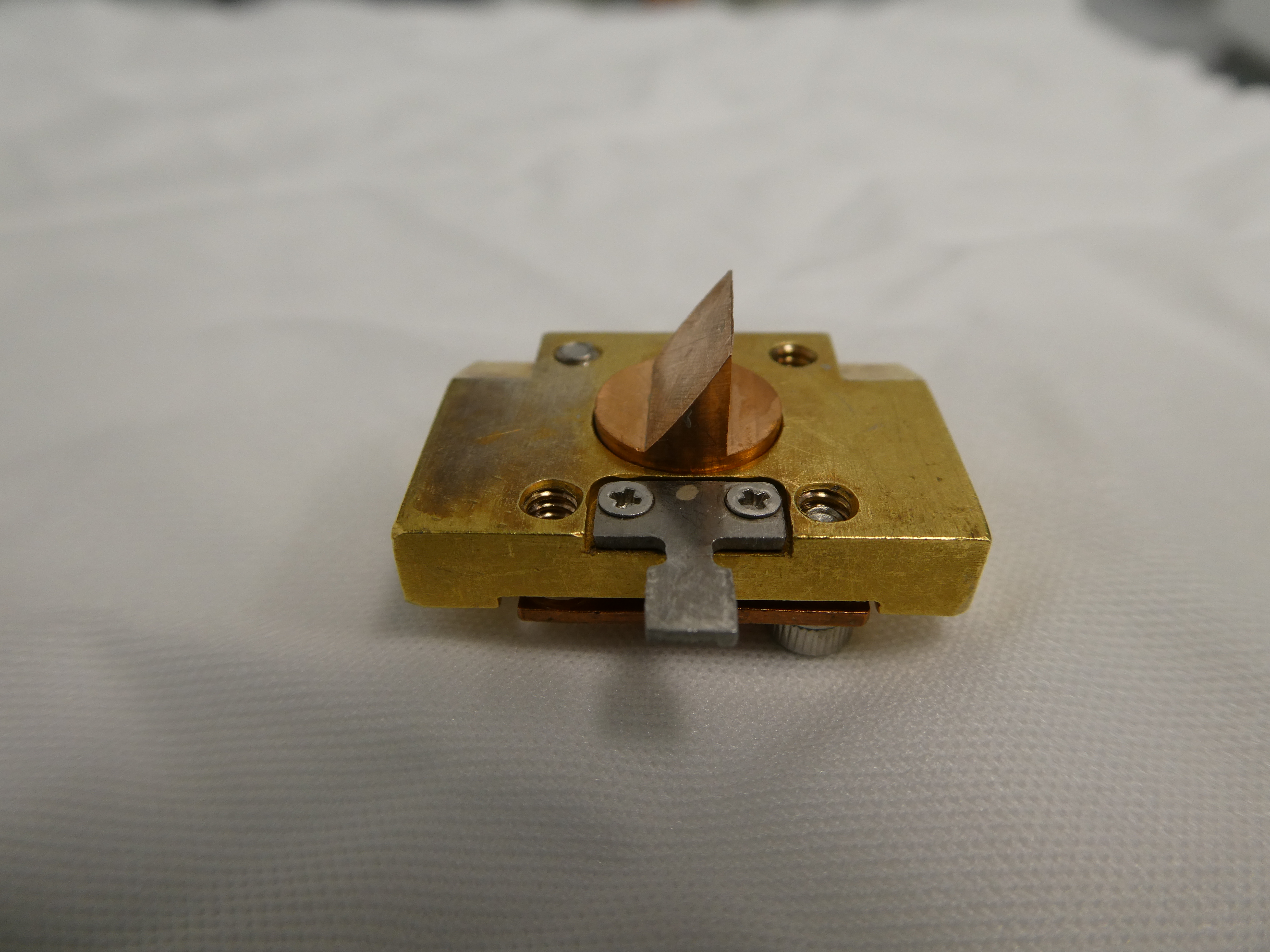

Sample Holder with Azimuthal Plug
Sample holder with flat azimuthal plug (10mm diameter) (left) and wedge plug (right) for in-vacuum adjustment of azimuthal angle.

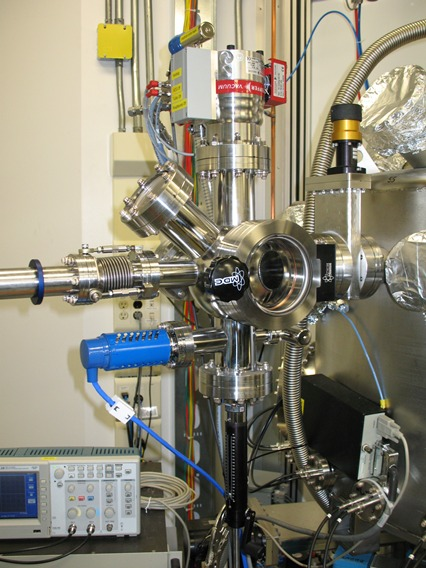

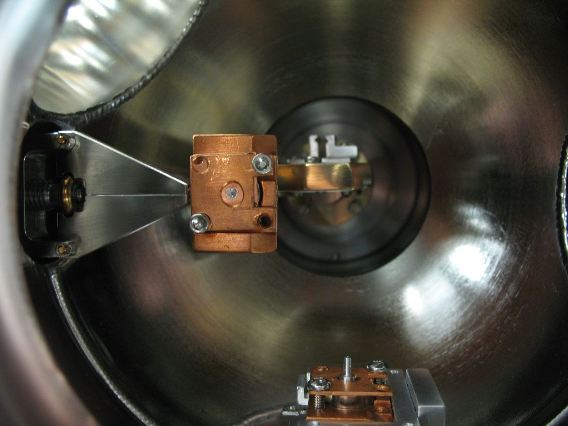

Loadlock for RSXS Endstation
Mounting samples

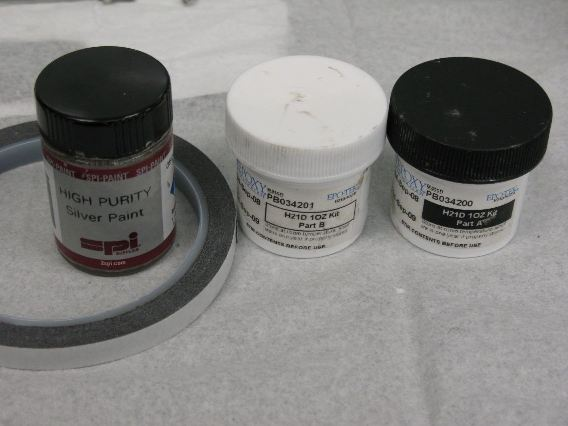

Silver paint, silver epoxy, and carbon tape are available for mounting samples.
Useful information on Sample preparation, courtesy of A. Achkar.
Achkar Sample Mounting.pdf
